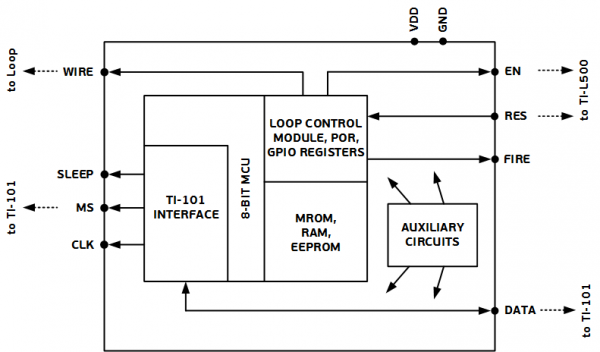

Controller for stand-alone drift compensation sensors TI-103 is a cross functional integrated circuit containing a microcontroller core for development of premium stand-alone sensors. The device includes a MROM, a RAM, an EEPROM, a core microprocessor, 8192 Hz and 4 MHz generators and an interface.


  • XC06 HV technology
  • Power supply range: 4.5-5.5 V
  • Current consumption: 3 mA
  • Modified core Microchip PIC12
  • Two generators of 8192 Hz and 4 MHz
  • Hardware module realizing interface for IC TI-101
  • Hardware module for operation with loop
